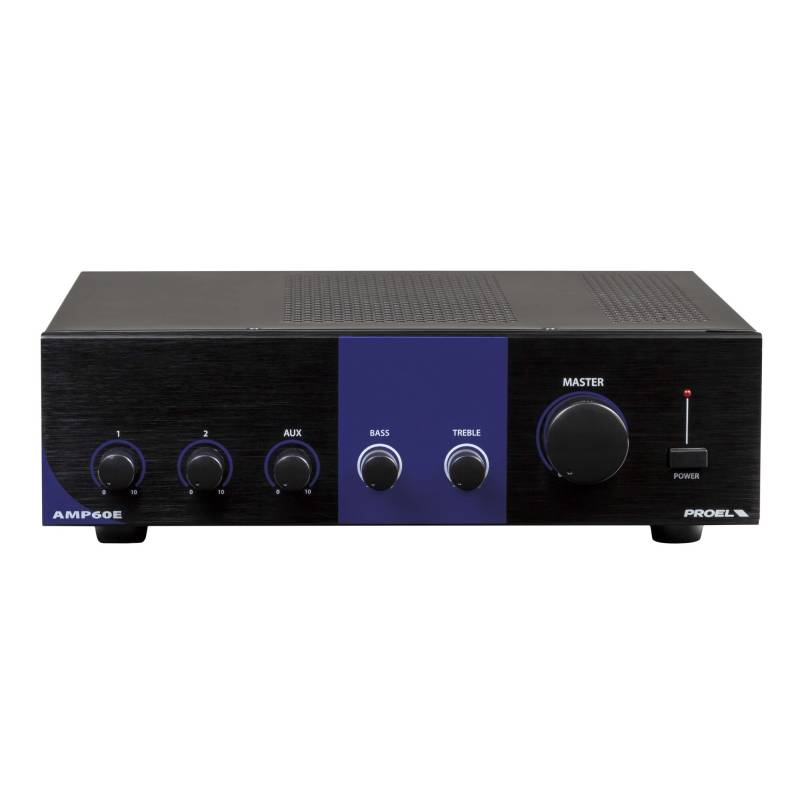

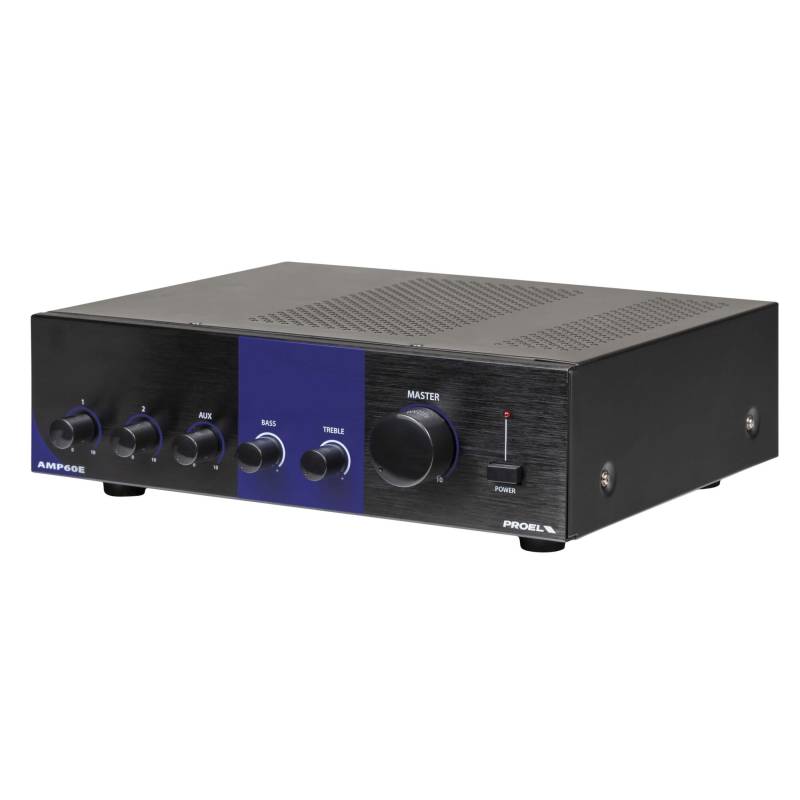

60W professional Desk mixer amplifiers with constant voltage (70/100V) or constant impedance (4/8Ω) output. This new series of power amplifiers has been conceived to fulfil the needs of a wide range of Commercial Audio installations in the most flexible and professional way. The new range responds to precise operating criteria and it has been designed and tested to guarantee maximum reliability in prolonged use.
MAIN FUNCTIONS
- Speakers overload and short-circuit protection circuit
- Led start-up indicator
- Main level control (Master)
- Separated Level Controls for 1÷2 and AUX inputs
- Bass and Treble tone adjustment

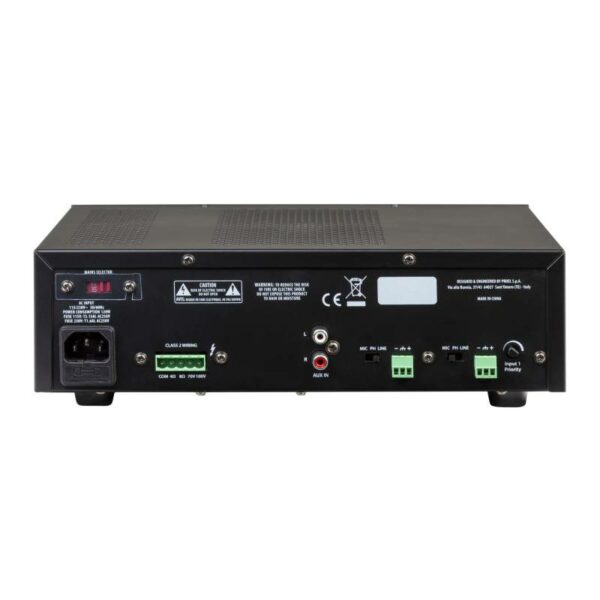

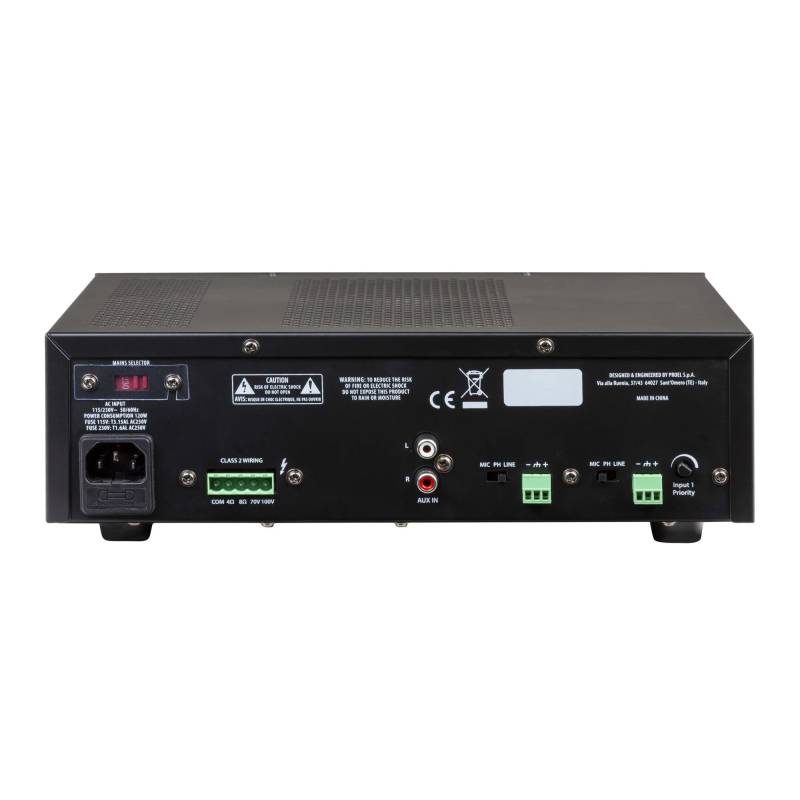

- 2 MIC / MIC Phantom 48V / LINE inputs balanced on Euroblock terminals
- 1 AUX Line RCA Input
- MIC 1 Input with priority function
- 4 outputs, two at constant impedance (8/4Ω) and two at constant voltage (70/100V)
| Output power | RMS 60Â W |
| Inputs | 2x MIC/PH/LINE (3.5mm EUROBLOCK) 1x AUX (RCA L & R) |
| Input Sensitivity | MIC: -50 dBv / 1 kΩ balanced PH: as above with 24V phantom supply LINE: -10 dBv / 100 kΩ balanced AUX: -10 dBv / 47 kΩ unbalanced |
| Controls | MASTER VOLUME CONTROL 1 TREBLE TONE CONTROL 1 BASS TONE CONTROL 2 MIC/LINE VOLUME CONTROLS 1 AUX VOLUME CONTROL 1 PRIORITY on MIC/LINE 1 |
| Tone Controls | Shelving +/- 10 dB @ 10 kHz Shelving +/- 10 dB @ 100 Hz |
| Loudspeakers outputs | 100/70V/8Ω/4Ω |
| Output Connector | 5.08 mm EUROBLOCK |
| Frequency response | 60Hz -20KHz (-3dB) |
| Distortion (THD) |  < 0.5% (@ Pnom 1KHz) S/N Ratio MIC: ≥70dB LINE: ≥70dB AUX: ≥80dB |
| Operating temperature | 0 ÷ +45°C |
| Power Supply | 100-120V~ 50/60Hz (select 115V) or 220-240V~ 50/60Hz (select 230V) |
| Power Consumption | 120 W |
| Dimensions (LxHxP) | 289 x 91 x 232 mm |
| Weight | Â 5.3 Kg |
